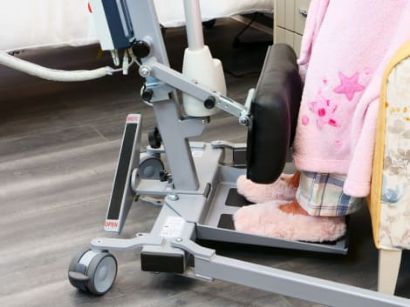

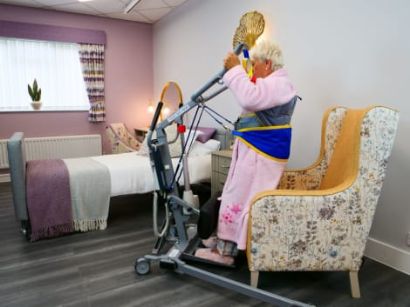

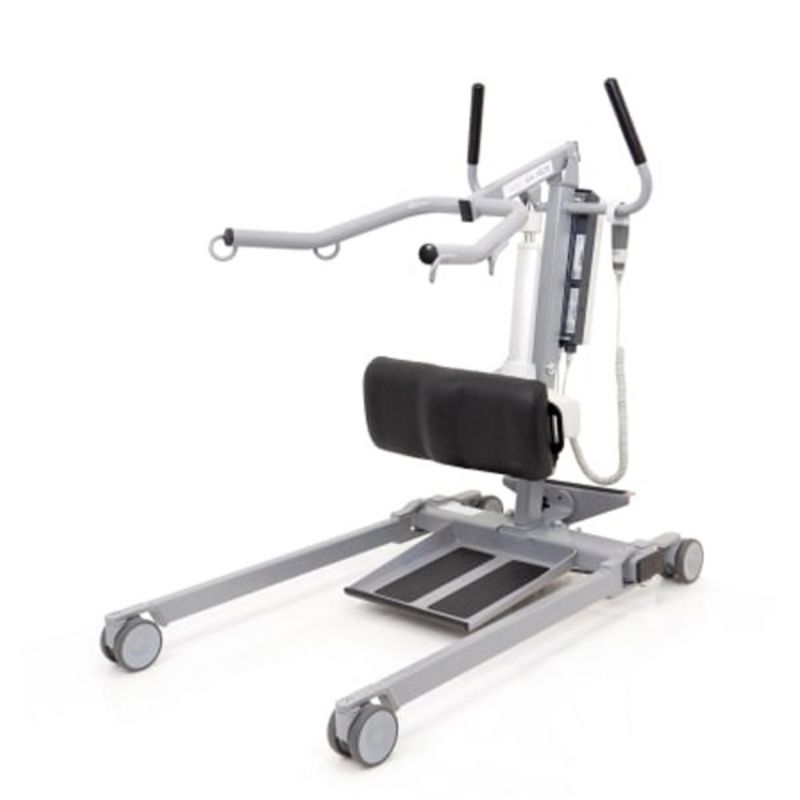

Mackworth Essentials SA180E Stand Aid

• Robust design built to last - The frame is a powder-coated steel construction, offering durability and stability. The stand aid can carry up to 180kg (28 stone 4lb) and includes a soft, adjustable knee pad to provide extra support during the lift.

• User-friendly controls - A Linak® control system is used as standard. The system includes intuitive hand controls making it easy to raise/lower the lifting arm.

• Safety features offer peace of mind - The stand aid includes many safety features, including emergency lowering, manual lowering and an emergency stop button.

• Easy to use - The lightweight frame, large swivel castors, ergonomic handle, and manually operated leg opening and closing makes it easy to manoeuvre the stand around wide obstacles. This means you can easily get closer to the patient.

• Warranty - A 5-year warranty is included as standard.

Weights and dimensions

• Safe working load: 180kg (28 stone 4lb)

• Unit weight (unboxed): 47kg

• Base weight: 23kg
• Mast and boom weight: 24kg

• Height: 1,145 - 1685mm

• Length: 1,190mm

• Ground clearance: 33mm

• Under bed clearance: 112mm

• Leg opening range: 680 - 1,050mm

• Turning circle: 1,230mm

Details

• Material: Powder-coated steel, PU foam, vinyl PVC

• Front castors: 100mm

• Rear, braked castors: 100mm

• Hand controls: Wired electric hooked handset

• Lift actuator: Electric (LA44)

• Charging time: 8 hours

• Lifts per charge: 30

• Sling connection: Looped

User Manual
