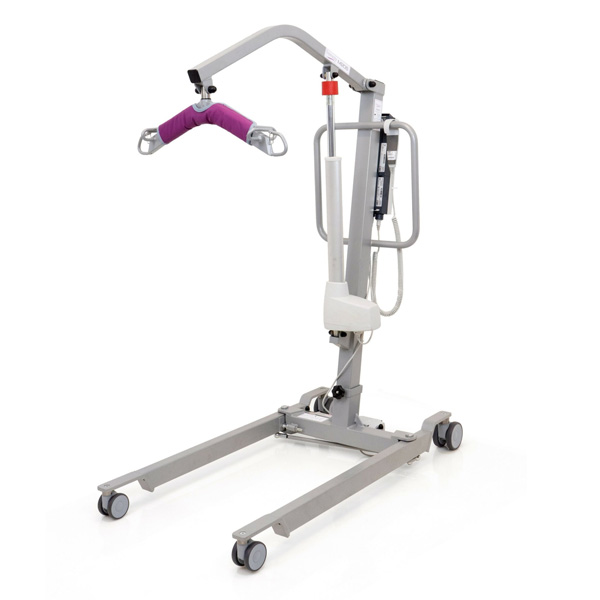

Freeway M205 Mobile Hoist

• Robust design, built to last - The frame is a powder-coated steel construction, offering durability and stability. The mobile hoist can carry up to 205kg (32 stone 4lb), and the 1.4m lifting range makes it suitable for most uses, including lifting a patient from the floor.

• User-friendly controls - A Linak control system is used as standard. The system includes intuitive hand controls making it easy to raise/lower the carry bar. The LCD screen displays battery level and service interval reminders.

• Safety features offer peace of mind - The hoist includes many safety features, including emergency lowering, manual lowering and an emergency stop button.

• Easy to use - The large swivel castors, ergonomic handle, and electrically operated leg opening and closing make it easy to manoeuvre the hoist around wide obstacles. This means you can easily get closer to the patient.

• Simple installation - No tools are needed to assemble the hoist, making it an easy, single-person assembly.

• Optional QRS Carry Bar - The quick-release system makes it easy to change the carry bar quickly or attach the optional QRS scales unit for hassle-free weighing.

• Warranty - A 5-year warranty is included as standard.

Weights and dimensions

• Safe working load: 205kg (32 stone 4lb)

• Unit weight (unboxed): 40kg
  • Base weight: 18.5kg
  • Mast and boom weight: 21.5kg

• Carry bar weight: 2kg (optional extra)

• Height: 1,340 - 2,010mm

• Length: 1,235mm

• Ground clearance: 15mm

• Under bed clearance: 100mm

• Lifting range (floor to carry bar): 380 - 1,750mm

• Leg opening range: 620 - 1,150mm

• Turning circle: 1,010mm

Details

• Material: Powder-coated steel, vinyl PVC

• Front castors: 75mm

• Rear, braked castors: 100mm

• Hand controls: Wired electric hooked handset

• Lift actuator: Electric (LA44)

• Leg opening actuator: Electric (LA23)

• Charging time: 8 hours

• Lifts per charge: 30

• Sling connection: Looped
