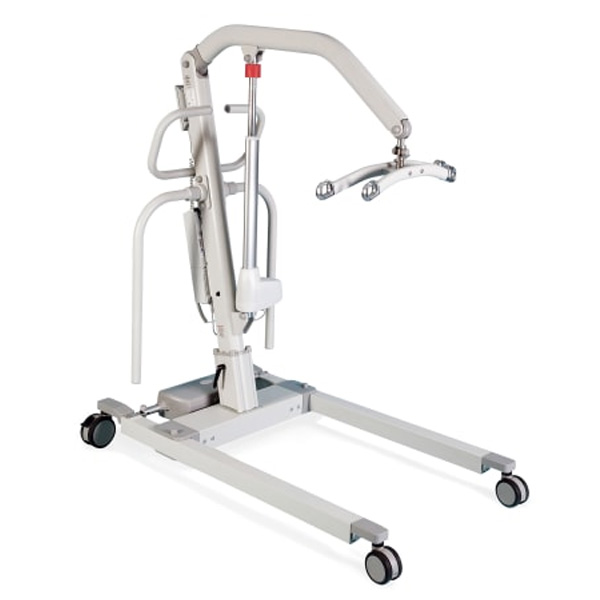

Prism A-320B Bariatric Aluminium Mobile Hoist

• Robust design, built to last - The frame is a powder-coated aluminium construction offering durability and stability. The mobile hoist can carry up to 320kg (50 stone 5lbs), and the lifting range of up to 1.94m makes it suitable for most uses, including lifting a patient from the floor.

• User-friendly controls - A Linak® control system is used as standard. The system includes intuitive hand controls making it easy to raise/lower the carry bar. The LCD screen displays battery level and service interval reminders.

• Safety features offer peace of mind - The hoist includes many safety features, including emergency lowering, manual lowering and an emergency stop button.

• Easy to use - The lightweight frame, large swivel castors, ergonomic handle, and electrically operated leg opening and closing make it easy to manoeuvre the hoist around wide obstacles. This means you can easily get closer to the patient.

• Simple installation - No tools are needed to assemble the hoist, making it an easy, single-person assembly.

• Optional QRS Carry Bar - The quick-release system makes it easy to quickly change the carry bar or to attach the optional QRS scales unit for hassle-free weighing.

• Warranty - A 5-year warranty is included as standard.

• Safe working load: 320kg (50 stone 5lb)

• Unit weight (unboxed): 64kg
  • QRS Carry Bar: 3.5kg
  • Battery pack: 2kg

• Height: 2,155mm (for the standard model)

• Length: 1,500mm

• Ground clearance: 85mm

• Under bed clearance: 155mm

• Lifting range (floor to carry bar): 640 - 1,940mm (for the standard model)

• Leg opening range: 640 - 1,065mm

• Turning circle: 1,595mm

Details

• Material: Powder-coated aluminium, vinyl PVC

• Front castors: 100mm

• Rear, braked castors: 125mm

• Hand controls: Wired electric hooked handset

• Lift actuator:  Electric (LA44)

• Leg opening actuator: Electric (LA28)

• Lifts per charge: 30

• Sling connection: Looped
